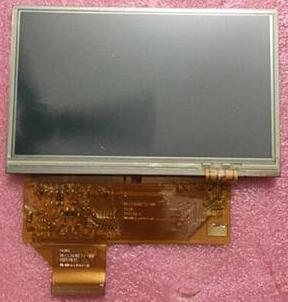

TFT LCDChiHsin 4.3 inch TFT LCD LR043JC211 480*272
Mouse over to zoom in
- Product 160/186
-
Panel Brand: ChiHsin
Panel Model: LR043JC211
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.3 inch
Resolution: 480(RGB)*272, WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare (Haze 10%)
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 10/10 (Typ.) (Tr/Td) (ms)
Viewing Angle: 75/75/70/75 (Typ.)(CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S1P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.0/5.0V (Typ.) (VDD/VCC)
RoHS
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
