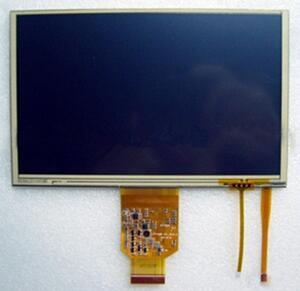

TFT LCDSAMSUNG 7.0 LCD Digital Screen LMS700KF01 TP
Mouse over to zoom in
- Product 121/374
-
Panel Brand: SAMSUNG
Panel Model: LMS700KF01-001
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800*480(RGB), WVGA
Display Mode: TN, Normally White, TMR
Surface: /
Brightness: 280 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 22.7 (Typ.)(Tr+Td)
Viewing Angle: 65/65/50/60 (Typ.)(L/R/U/D)
Frequency: 60 Hz
Lamp Type: 8S3P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)(VCC)
RoHS
Application: All MP4 PMP Panel, All VOIP Phone Panel, All Car Display Panel, All Digital Photo Frame Panel, All Portable DVD Player Panel
