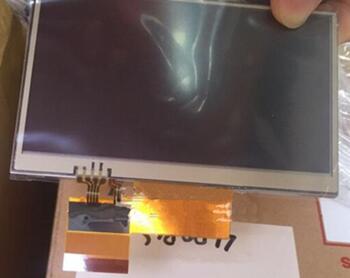

TFT LCDSHARP 4.3 inch TFT LCD Panel LQ043T1DH04 480*272
Mouse over to zoom in
- Product 111/186
-
Panel Brand: SHARP
Panel Model: LQ043T1DH04
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.3 inch
Resolution: 480*272(RGB), WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (2H)
Brightness: 360 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 8/8 (Typ.) (Tr/Td)
Viewing Angle: 45/45/20/55 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 9S1P WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)+SPI
Input Voltage: 1.8/(3.3/1.8)V (Typ.) (VDDIO/VCI)
RoHS 1407042009_2
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
