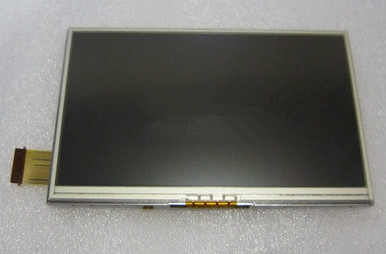

TFT LCDHannStar 5.0" TFT LCD HSD050I9W1-A00-R00 480*272
Mouse over to zoom in
- Product 54/100
-
Panel Brand: HannStar
Panel Model: HSD050I9W1-A00-R00
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 480(RGB)*272, WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Harding coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 15/17 (Typ.) (Tr/Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S2P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Car Display Panel
