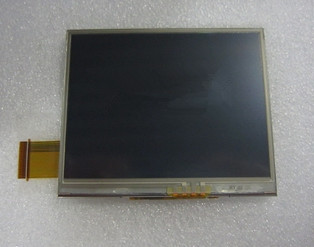

TFT LCDTIANMA 3.5" 45P TFT LCD TS035KAAVB04-00 320*240
Mouse over to zoom in
- Product 124/203
-
Panel Brand: TIANMA
Panel Model: TS035KAAVB04-00
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 320 cd/m2 (Typ.)
Contrast Ratio: 350:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 25 (Typ.) (Tr+Td) (ms)
Viewing Angle: 60/60/50/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 6S1P WLED
Signal Interface: Digital RGB (8-bit)+SPI, CCIR601/656
Input Voltage: 3.3V (Typ.) (VCC)
RoHS
Application:
