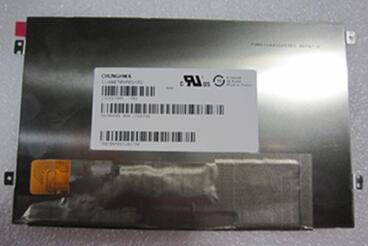

TFT LCDCPT 7" MINI U30GT Screen CLAA070NP01HXG 1024*600
Mouse over to zoom in
- Product 141/374
-
Panel Brand: CPT
Panel Model: CLAA070NP01HXG
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: HFFS, Normally Black, Transmissive
Surface:
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 50 (Typ.) (Tr+Td) (ms)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S4P WLED
Signal Interface: LVDS (1 ch, 8-bit)+SPI
Input Voltage: 3.3V (Typ.)
RoHS
Application: All MP4 PMP Panel, All MID UMPC Panel, All Pad Panel
