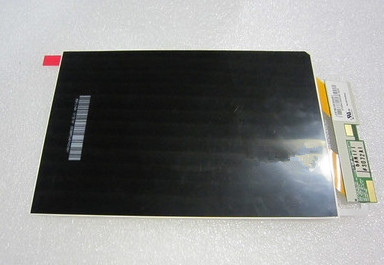

TFT LCDLG 7.0 inch TFT LCD LD070WX5-SM01 900*1440
Mouse over to zoom in
- Product 144/374
-
Panel Brand: LG Display
Panel Model: LD070WX5-SM01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 900(RGB)*1440, WXGA+
Display Mode: IPS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 35 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S4P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 3.3V (Typ.)
RoHS
Application:
