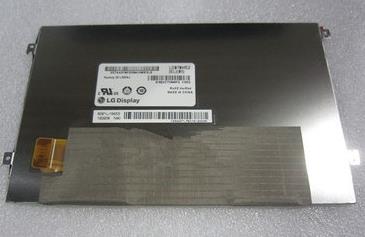

TFT LCDLG 7 inch TFT LCD Panel LD070WS2-SL05 1024*600
Mouse over to zoom in
- Product 153/374
-
Panel Brand: LG Display
Panel Model: LD070WS2-SL05
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Hard coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 50 (Max.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S4P WLED
Signal Interface: LVDS (1 ch, 8-bit)+SPI
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Pad Panel, All MID UMPC Panel
