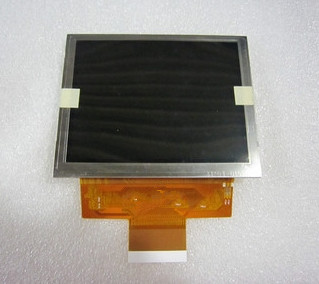

TFT LCDLG 4" TFT LCD Panel LB040Q02-TD01 QVGA 320*240
Mouse over to zoom in
- Product 29/55
-
Panel Brand: LG.Philips LCD
Panel Model: LB040Q02-TD01
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.0 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 10/30 (Typ.) (Tr/Td)
Viewing Angle: 65/65/50/65 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 1 pcs CCFL
Signal Interface: CMOS/TTL (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.) (VCC)
RoHS
Application: All Car Display Panel
