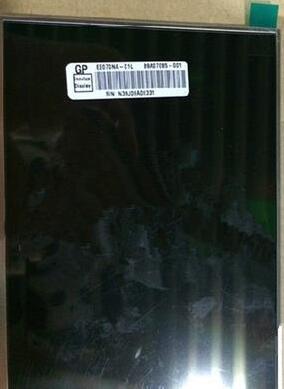

TFT LCD7.0 inch HD TFT LCD Panel ZJ070NA-01C 1024*600
Mouse over to zoom in
- Product 162/374
-
Panel Brand: CHIMEI INNOLUX
Panel Model: ZJ070NA-01C
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: Glare (Haze 0%)
Brightness: 300 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 10/15 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S8P WLED
Signal Interface: MIPI (4 data lanes)
Input Voltage: 1.85/11/20/-6.8V (Typ.) (VDD/AVDD/VGH/VGL)
RoHS
Application: All MP4 PMP Panel, All Pad Panel, All MID UMPC Panel
