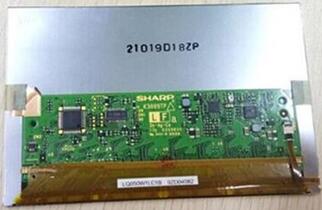

TFT LCDSHARP 5.0" TFT LCD Screen LQ050W1LC1B 1024*600
Mouse over to zoom in
- Product 58/100
-
Panel Brand: SHARP
Panel Model: LQ050W1LC1B
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 5.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: Glare (Haze 0%), Hard coating (2H)
Brightness: 430 cd/m2 (Typ.)
Contrast Ratio: 450:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 30 (Typ.) (Tr+Td)
Viewing Angle: 70/70/50/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All MID UMPC Panel
