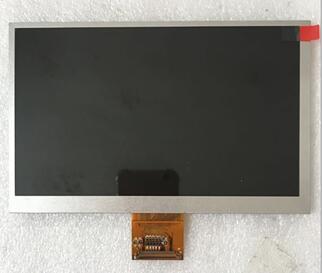

TFT LCDINNOLUX 7.0" MID HD TFT LCD AT070TNA2 1024*600
Mouse over to zoom in
- Product 175/374
-
Panel Brand: CHIMEI INNOLUX
Panel Model: AT070TNA2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit+ Dithering)
Response Rime: 10/10 (Typ.) (Tr/Td)
Viewing Angle: 75/75/70/75 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S6P WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3/11/20/-6.8V (Typ.) (DVDD/AVDD/VGH/VGL)
RoHS
Application: All Pad Panel, All Netbook PC Panel, All MID UMPC Panel, All MP4 PMP Panel
