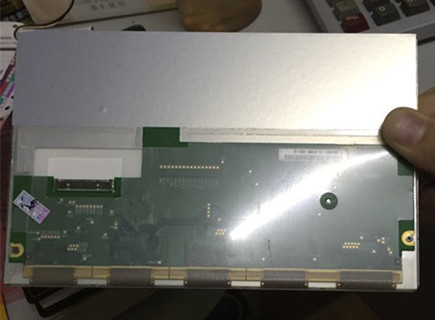

TFT LCDAUO 7.0" TFT LCD Panel A070VW01 V2 WVGA 800*480
Mouse over to zoom in
- Product 95/374
-
Panel Brand: AUO
Panel Model: A070VW01 V2
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480 WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare (Haze 5.5%)
Brightness: 330 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 12/18 (Typ.)(Tr/Td)
Viewing Angle: 60/60/40/60 (Typ.) (L/R/U/D)
Frequency:
Lamp Type: WLED
Signal Interface: TTL (1 ch, 6-bit)
Input Voltage:
RoHS
Application: All Portable DVD Player Panel
