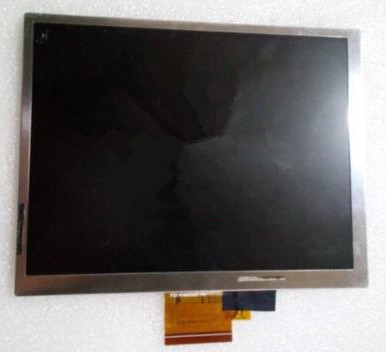

TFT LCDHannStar 7" AW900 Screen HSD070ISN1-B00 7214H60062A1
Mouse over to zoom in
- Product 183/374
-
Panel Brand: HannStar
Panel Model: HSD070ISN1-B00
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 200 cd/m2 (Typ.)
Contrast Ratio: 600:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 2.4/5.6 (Typ.) (Tr/Td)
Viewing Angle: 60/70/70/75 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 2S7P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3/9.5/16.5/-10V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel
