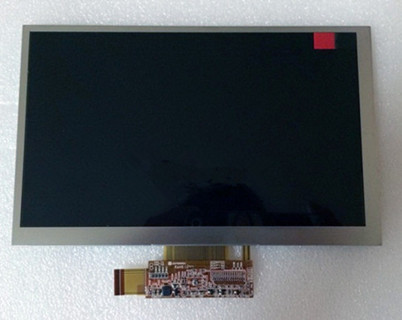

TFT LCDTIANMA 7 inch HD TFT LCD TM070DDH09 1024*800
Mouse over to zoom in
- Product 186/374
-
Panel Brand: TIANMA
Panel Model: TM070DDH09
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*800, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 20 (Typ.) (Tr+Td)
Viewing Angle: 75/75/70/75 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S6P WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3V (Typ.) (VDD)
RoHS
Application: All MP4 PMP Panel, All MID UMPC Panel
