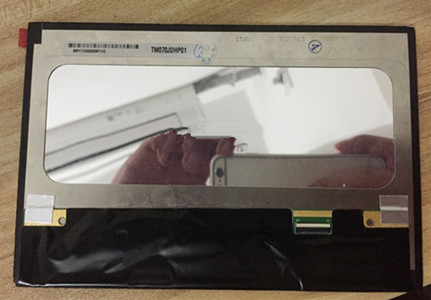

TFT LCDTIANMA 7.0" HD TFT LCD TM070JDHP01 1587000592
Mouse over to zoom in
- Product 188/374
-
Panel Brand: TIANMA
Panel Model: TM070JDHP01-00
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: SIP, Normally Black, Transmissive
Surface: Antireflection
Brightness: 420 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 9S2P WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All MID UMPC Panel, All Pad Panel
