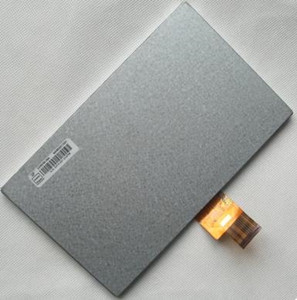

TFT LCDINNOLUX 8.0 inch HD TFT LCD ZJ080NA-08A No TP
Mouse over to zoom in
- Product 63/121
-
Panel Brand: CHIMEI INNOLUX
Panel Model: ZJ080NA-08A
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: TN, Normally White, Transmissive
Surface:
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 10/20 (Typ.) (Tr/Td)
Viewing Angle: 75/75/70/75 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3/11.0/20.0/-6.8V (Typ.) (VDD/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
