Characteristic

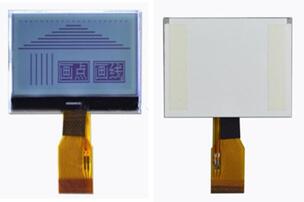

1 Structure: backlight with retaining wall, welding type FPC

2 IC: ST7567, powerful function, good stability

3 Low power consumption: not backlight is 1mW (3.3V*0.3mA), backlight is not more than 150mW (3.3V*45mA)

4 Display content:

(1) the 128*64 dot matrix monochrome images, or other less than 128*64 dot matrix monochrome picture

(2) 16*16 dot matrix or other lattice images from series Chinese characters, according to calculations can be Chinese characters 16*16 dot matrix, display 8 word lines *4

(3) According to 12*12 lattice Chinese characters to calculate can display 10 bit *4 line

(4) According to 8*16lattice Chinese characters to calculate can display 16 bit *4 line

(5) According to 5*8lattice Chinese characters to calculate can display 21 bit *8 line

5 Current: 16-40mA (2 LED)

6 Storage temperature: -30-80 degree

7 Color: grey backlight black word

8 Instruction function

9 LCM working voltage: 3.3V

10 Interface: 4-wire SPI serial interface or parallel interface (please choose)

11 Connector: COG

12 Working temperature: -20 - 70 degrees
