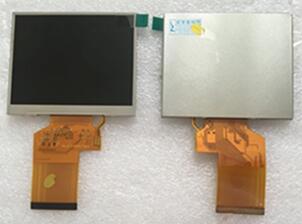

TFT LCDChiHsin 3.5 inch TFT LCD LQ035NC211 320*240 No TP
Mouse over to zoom in
- Product 27/203
-
Panel Brand: ChiHsin
Panel Model: LQ035NC211
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare Glare (Haze 20%)
Brightness: 200 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 16.7M
Response Rime: 10/15 (Typ.) (Tr/Td)
Viewing Angle: 60/60/50/55 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 6S1P WLED
Signal Interface: Digital RGB (8/24-bit), CCIR601/656
Input Voltage: 3.3V (Typ.) (VCC)
RoHS
Application: All Digital Still Camera Panel, All Digital Video Camera Panel, All Portable Navigation Device Panel
