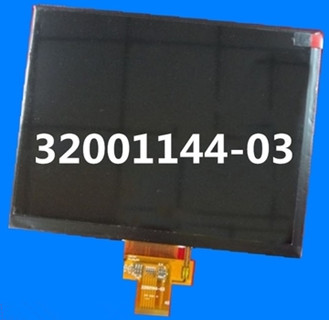

TFT LCDIPS 8 inch TFT LCD HJ080IA-01B 32001144-03 1024*768
Mouse over to zoom in
- Product 98/121
-
Panel Brand: CHIMEI INNOLUX
Panel Model: HJ080IA-01B
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 8.0 inch
Resolution: 1024(RGB)*768, XGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 262K / 16.7M (6-bit / 6-bit + Hi-FRC)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S11P WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/10.0/18.9/-7.8V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Pad, Tablet Panel
