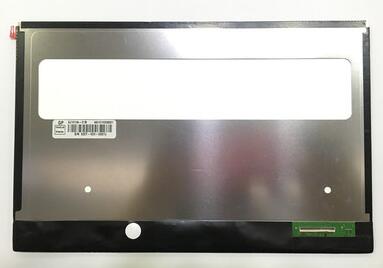

TFT LCDINNOLUX 10.1 inch TFT LCD EJ101IA-01B 1280*800
Mouse over to zoom in
- Product 32/108
-
Panel Brand: CHIMEI INNOLUX
Panel Model: EJ101IA-01B
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1280(RGB)*800, WXGA
Display Mode: IPS, Normally Black, Transmissive
Surface: Hard coating
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 10/15 (Typ.) (Tr/Td)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Pad, Tablet Panel
