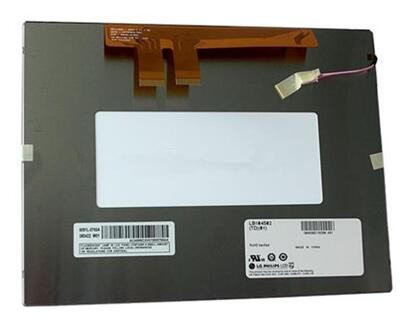

TFT LCDLG 10.4 inch TFT LCD Panel LB104S02-TD02 800*600
Mouse over to zoom in
- Product 17/38
-
Panel Brand:
Panel Model: LB104S02-TD02
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.4 inch
Resolution: 800(RGB)*600, SVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 6/19 (Typ.) (Tr/Td)
Viewing Angle: 65/65/55/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 1 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/9.32/17.55/-4.99V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application:
