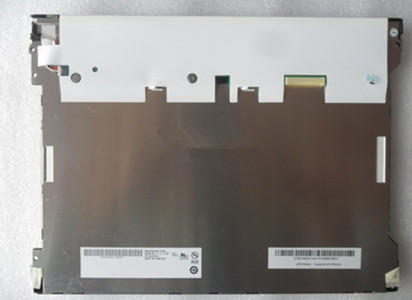

TFT LCDAUO 12.1 inch TFT LCD G121XN01 V0 1024*768
Mouse over to zoom in
- Product 7/15
-
Panel Brand: AUO
Panel Model: G121XN01 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 12.1 inch
Resolution: 1024(RGB)*768(2), XGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating (3H)
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit+ FRC)
Response Rime: 25/10 (Typ.) (Tr/Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Industrial Application Panel
