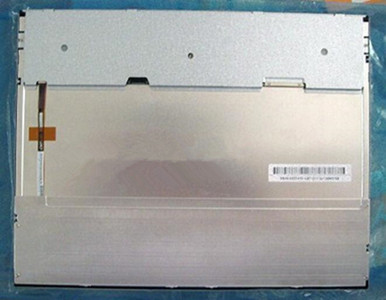

TFT LCDCMO 12.1 inch TFT LCD G121X1-L03 XGA 1024*768
Mouse over to zoom in
- Product 9/15
-
Panel Brand: CMO
Panel Model: G121X1-L03
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 12.1 inch
Resolution: 1024(RGB)*768, XGA
Display Mode: TN, Normally White, Transmissive
Surface: Glare (Haze 0%), Hard coating (3H),
Brightness: 600 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit + FRC)
Response Rime: 5/11 (Typ.) (Tr/Td)
Viewing Angle: 80/80/70/70(Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: WLED
Signal Interface: LVDS (1 ch, 6/8-bit)
Input Voltage: 3.3/5.0V (Typ.) (VCC)
RoHS
Application: All Game Machine Panel, All Car Display Panel, All Industrial Application Panel
