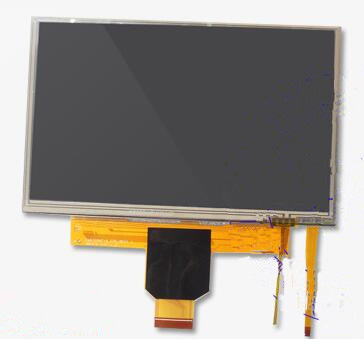

TFT LCDSAMSUNG 7 inch TFT LCD LMS700KF15 TP 800*480
Mouse over to zoom in
- Product 262/374
-
Panel Brand: SAMSUNG
Panel Model: LMS700KF15
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, TMR
Surface:
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 700:1 (Typ.)
Display Color: 16.2M (6-bit + FRC)
Response Rime: 16 (Typ.) (Tr+Td)
Viewing Angle: 70/70/70/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 8S3P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.) (VCC)
RoHS
Application: All MP4 PMP Panel, All Video Door Phone Panel, All Car Display Panel, All Digital Photo Frame Panel, All Portable DVD Player Panel
