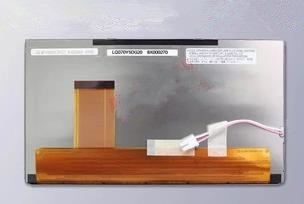

TFT LCDSHARP 7 inch TFT LCD LQ070Y5DG20 LQ0DAS3006
Mouse over to zoom in
- Product 85/374
-
Panel Brand: SHARP
Panel Model: LQ070Y5DG20
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 100:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 30/50 (Typ.) (Tr/Td)
Viewing Angle: 65/65/65/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 1 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 5.3/3.3/15/-12V (Typ.) (VSHA/VSHD/VDD/VEE)
RoHS
Application: All Car Display Panel
