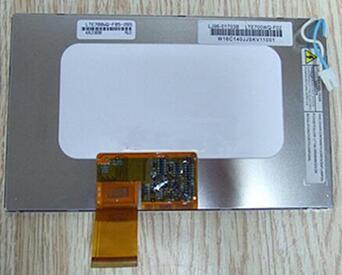

TFT LCDSAMSUNG 7.0" TFT LCD LTE700WQ-F05 No TP 480*234
Mouse over to zoom in
- Product 192/374
-
Panel Brand: SAMSUNG
Panel Model: LTE700WQ-F05
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480* 234(RGB)
Display Mode: TN, Normally White, TMR
Surface:
Brightness: 450 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 13/17 (Typ.) (Tr+Td)
Viewing Angle: 65/65/55/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 1 pcs CCFL
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 2.5/3.3V (Typ.) (VDD)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
