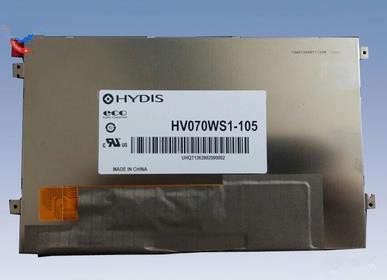

TFT LCD7.0 inch TFT LCD HV070WS1-105 WSVGA 1024*600
Mouse over to zoom in
- Product 270/374
-
Panel Brand: /
Panel Model: HV070WS1-105
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 1024(RGB)*600, WSVGA
Display Mode: ADS, Normally Black, Transmissive
Active Area: 153.6*90 mm
Outline:
Surface:
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 50 (Typ.) (Tr+Td);
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S4P WLED Without Driver
Signal Interface: LVDS (1 ch, 8-bit) + SPI, 30Pins
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
