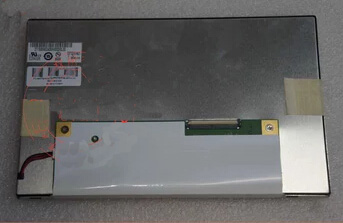

TFT LCDAUO 7.0 inch TFT LCD G070VVN01.1 WVGA 800*480
Mouse over to zoom in
- Product 267/374
-
Panel Brand: AUO
Panel Model: G070WN01.1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: AMVA3, Normally Black, Transmissive
Active Area: 152.4*91.44 mm
Outline: 164.55*104.71*8 mm
Surface: Antiglare, Hard coating (3H)
Brightness: 600 cd/m2 (Typ.)
Contrast Ratio: 1500:1 (Typ.)
Display Color: 262K / 16.2M (6-bit / 6-bit + FRC)
Response Rime: 10/25 (Typ.) (Tr/Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 7S2P WLED
Signal Interface: Parallel RGB (1 ch, 6/8-bit)
Input Voltage: 3.3V (Typ.)
Application: All Industrial Application Panel
