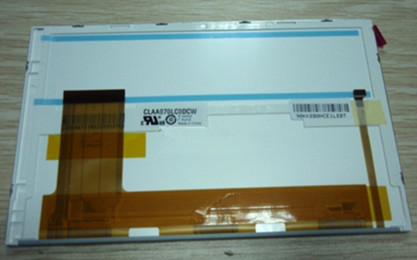

TFT LCDCPT 7.0" MID TFT LCD CLAA070LC0DCW 800*480
Mouse over to zoom in
- Product 63/374
-
Panel Brand: CPT
Panel Model: CLAA070LC0DCW
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Active Area: 152.4*291.44 mm
Outline: 165*104 mm
Surface: Antiglare, Hard coating (3H)
Brightness: 220 cd/m2 (Typ.)
Contrast Ratio: 400:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 20 (Typ.) (Tr+Td)
Viewing Angle: 70/70/40/60 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3S5P WLED
Signal Interface: TTL (1 ch, 6-bit)
Input Voltage: 3.3/9.6V (Typ.) (VCC/AVDD)
Application: All MP4 PMP Panel, All Digital Photo Frame Panel, All Portable DVD Player Panel, All MID UMPC Panel
