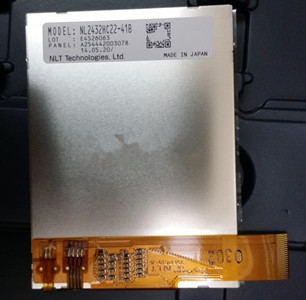

3.5 inch TFT LCD PA967RF Screen NL2432HC22-41
Mouse over to zoom in
Product 187/193

Price: US$67.00   Submit a wholesale Inquiry
Quantity:



Panel Brand: /

Panel Model: NL2432HC22-41B

Panel Type: a-Si TFT-LCD, Panel

Panel Size: 3.5 inch

Resolution: 240(RGB)*320, QVGA

Display Mode: TN, Normally White, Transflective

Active Area: 53.64*71.52 mm

Outline:

Surface: Clear, Hard coating (3H)

Brightness: 200 cd/m2 (Typ.)

Contrast Ratio: 150:1 (Typ.)

Display Color: 262K (6-bit), CIE1931 40%

Response Rime: 7/23 (Typ.) (Tr/Td)

Viewing Angle: 30/30/30/35 (Typ.) (CR≥10) (L/R/U/D)

Frequency: 60Hz

Lamp Type: 6S1P WLED Without Driver

Signal Interface: CMOS (1 ch, 6-bit) + SPI

Input Voltage: 3.0V (Typ.)

Application: All PDA Panel, All Handheld Product Panel
