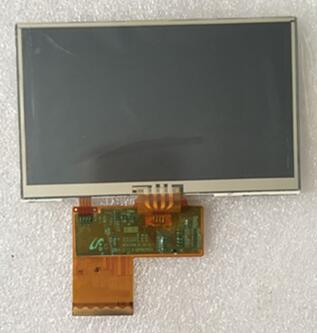

TFT LCDSAMSUNG 4.3 inch TFT LCD LMS430HF26 TP 480*272
Mouse over to zoom in
- Product 27/186
-
Panel Brand: SAMSUNG
Panel Model: LMS430HF26
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.3 inch
Resolution: 480*272(RGB), WQVGA
Display Mode: VA, Normally Black, Transflective
Active Area: 95.04*53.856 mm
Outline: 105.5*67.2*4.05 mm
Surface: Hard coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.) (Transmissive)
Display Color: 16.7M (8-bit)
Response Rime: 17/15 (Typ.) (Tr/Td)
Viewing Angle: 80/80/80/80 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 10S1P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
