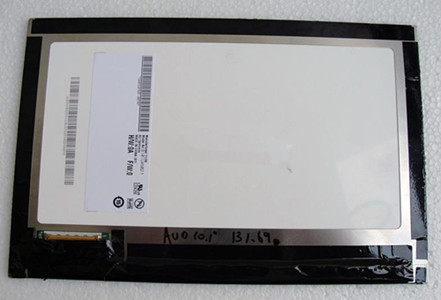

TFT LCDIPS AUO 10.1 inch 50P TFT LCD B101UAN02.1
Mouse over to zoom in
- Product 96/108
-
Panel Brand: AUO
Panel Model: B101UAN02.1 (Compatible for B101UAN01.1)
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 10.1 inch
Resolution: 1920(RGB)*1200, WUGA
Display Mode: AHVA, Normally Black, Transmissive
Active Area: 216.81*135.5 mm
Outline: 229.45*149.2*5 mm
Surface: Glare (Haze 0%), Hard coating (3H)
Brightness: 400 cd/m2 (Typ.)
Contrast Ratio: 800:1 (Typ.)
Display Color: 16.7M (8-bit), CIE1931 68%
Response Rime: 13/12 (Typ.) (Tr/Td)
Viewing Angle: 89/89/89/89 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5 strings WLED Without Driver
Signal Interface: LVDS (2 ch, 8-bit) 50 Pins
Input Voltage: 3.3V (Typ.)
Application: All Pad, Tablet Panel
