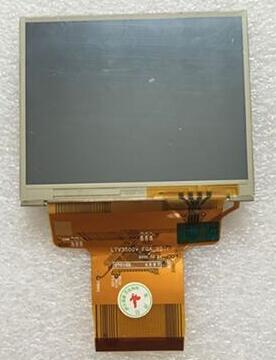

TFT LCDSAMSUNG 3.5 inch TFT LCD Touch Screen LTV350QV-F0A
Mouse over to zoom in
- Product 88/203
-
Panel Brand: SAMSUNG
Panel Model: LTV350QV-F0A
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, QVGA
Display Mode: TN, Normally White, TMR
Active Area: 70.08*52.56 mm
Outline: 76.9*63.9*4.25 mm
Surface: Hard coating (3H)
Brightness: 200 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 16.7M (8-bit)
Response Rime: 25 (Typ.) (Tr+Td)
Viewing Angle: 60/60/50/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 6S1P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)+SPI
Input Voltage: 3.3/4.9/18.0/-10.0V (Typ.) (VCC/DDVDH/VGH/VGL)
Application: All Digital Still Camera Panel, All Digital Video Camera Panel, All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
