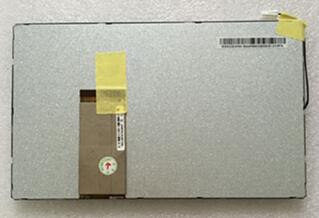

TFT LCDHannStar 8.0 inch TFT LCD HSD080IDW1-C01 800*480
Mouse over to zoom in
- Product 45/121
-
Brand: HannStar
Model: HSD080IDW1-C01
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard coating (3H)
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 500:1 (Min.) (TM)
Response Time: 5/20 (Typ.)(Tr/Td) ms
View Direction: 6 O’clock
Viewing Angle: 75/75/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Lamp Type: 3S10P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 60 pins TTL (1 ch, 6/8-bit) , FPC
Power Supply: 3.3/9.7/15.0/-9V (VCC/AVDD/VGH/VHL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Car Display Panel
