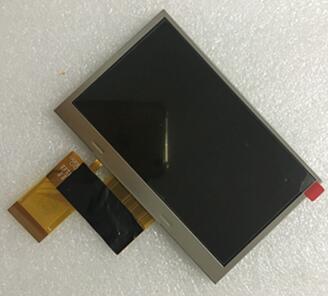

TFT LCDTIANMA 4.3 inch 40P TFT LCD TM043NBH02 No TP
Mouse over to zoom in
- Product 131/186
-
Panel Brand: TIANMA
Panel Model: TM043NBH02
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 4.3 inch
Resolution: 480(RGB)*272, WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 280 cd/m2 (Typ.)
Contrast Ratio: 450:1 (Typ.)
Display Color: 16.7M (6-bit + Hi-FRC)
Response Rime: 20 (Typ.) (Tr+Td)
Viewing Angle: 70/70/70/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 5S2P WLED
Signal Interface: Parallel RGB (1 ch, 8-bit)
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Portable Navigation Device Panel, All Pocket TV Panel, All MP4 PMP Panel
