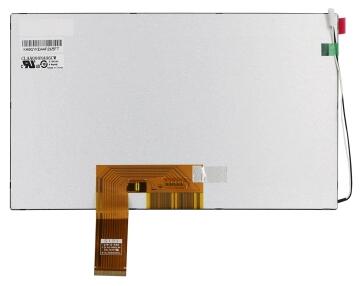

CPT 8.0 inch TFT LCD CLAA080NA01 CW 1024*600
Mouse over to zoom in
Product 23/121

Price: US$32.00   Submit a wholesale Inquiry
Quantity:



Brand: CPT

Model: CLAA080NA01 CW

Diagonal Size: 8.0 inch

Type: a-Si TFT-LCD, LCM

Pixel Format: 1024(RGB)*600 WSVGA

Configuration: RGB Vertical Stripe

Surface: Antiglare

Brightness: 670 cd/m² (Typ.)

Contrast Ratio: 800:1 (Typ.) TM

Response Time: 25 (Typ.)(Tr+Td) ms

Viewing Angle: 75/75/50/80 (Typ.)(CR≥10)

Operating Mode: TN, Normally White, Transmissive

Good View at: 6 O’clock

Support Color: 262K / 16.7M   50% (CIE1931)

Lamp Type: 13S3P WLED

Frequency: 60Hz

Touch Panel: Without

Interface Type: 40Pins LVDS (1 ch, 6/8-bit), FPC

Power Supply: 3.3/9.6/21.0/-6.0V (Typ.) (DVDD/AVDD/VGH/VGL)

Operating Temperature: -30 ~ 85°C

Storage Temperature: -40 ~ 90 °C

Application: All Car Display Panel
