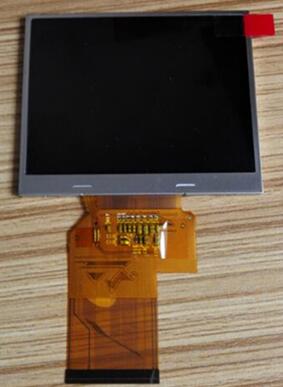

TFT LCDTIANMA 3.5 inch 54P TFT LCD TM035KDH16 320*240
Mouse over to zoom in
- Product 118/203
-
Brand: TIANMA
Model: TM035KDH16
Diagonal Size: 3.5inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240 QVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 20 (Typ.)(Tr+Td) ms
Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 6S1P WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: Digital RGB (8/24--bit) + SPI, CCIR601/656, FPC, 54Pin
Power Supply: 3.3V (Typ.)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: All Digital Still Camera Panel, All Digital Video Camera Panel
