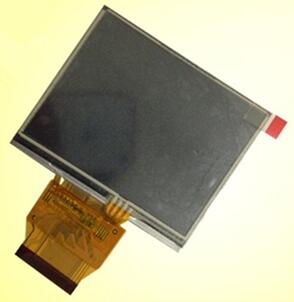

TFT LCDTIANMA 3.5 inch TFT LCD TM035KDH04 TP 320*240
Mouse over to zoom in
- Product 138/203
-
Panel Brand: TIANMA
Panel Model: TM035KDH04
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 3.5 inch
Resolution: 320(RGB)*240, WQVGA
Display Mode: TN, Normally White, Transmissive
Surface: Clear Hard coating (3H)
Brightness: 420 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Display Color: 16.7M (6-bit+ Dithering)
Response Rime: 25 (Typ.) (Tr+Td) (ms)
Viewing Angle: 70/70/60/70 (Typ.) (CR≥10) (L/R/U/D)
Frequency:
Lamp Type: 6S1P WLED
Signal Interface: Digital RGB (8/24-bit)+SPI, CCIR601/656
Input Voltage: 3.3V (Typ.)
RoHS
Application: All Digital Still Camera Panel, All Digital Video Camera Panel
