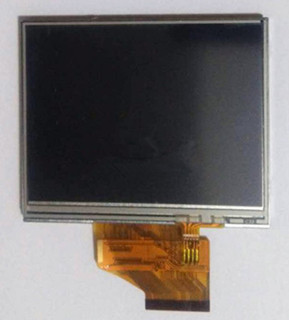

TFT LCDINNOLUX 3.5 inch TFT LCD PT035TN23 V.3 TP
Mouse over to zoom in
- Product 77/203
-
Brand: CHIMEI INNOLUX
Model: PT035TN23 V.3
Diagonal Size: 3.5 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 320(RGB)×240 QVGA
Configuration: RGB Vertical Stripe
Surface: Hard Coating
Brightness:
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 9/16 (Typ.)(Tr/Td) ms
Viewing Angle: 65/65/50/65 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: WLED
Frame Rate: 60Hz
Operating Temperature: -20 ~ 60°C
Storage Temperature: -30 ~ 80 °C
Application: All Digital Still Camera Panel, All Portable Navigation Device Panel, All Pocket TV Panel, All VOIP Phone Panel, All Video Door Phone Panel
