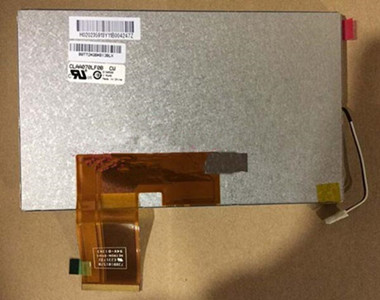

TFT LCDCPT 7.0 inch TFT LCD CLAA070LF0B CW 800*480
Mouse over to zoom in
- Product 38/374
-
Brand: CPT
Model: CLAA070LF0B CW
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard coating (3H)
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
View Direction: 6 o’clock
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 75/75/50/70 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 16.2M 50% (CIE1931)
Lamp Type: 3S7P WLED
Frame Rate: 60%
Touch Panel: Without
Interface Type: 60 pins TTL (1 ch, 8-bit), FPC
Power Supply: 3.3/9.6/18.0/-6 (Typ.) (DVDD/AVDD/VGH/VGL)
Operating Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80 °C
Application: Car Display Panel, Industrial Application Panel
