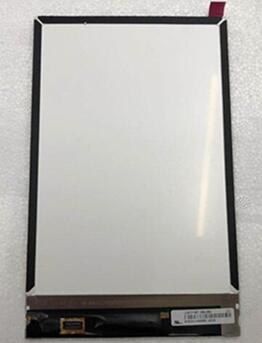

TFT LCDIPS 7.0 inch TFT LCD LD070WX7-SMN4 800*1280
Mouse over to zoom in
- Product 39/374
-
Brand: LG Display
Model: LD070WX7-SMN4
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×1280 WXGA
Configuration: RGB Vertical Stripe
Treatment: Hard Coating
Brightness: 350 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM)
Response Time: 35 (Typ.)(Tr+Td) ms
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: IPS, Normally Black, Transmissive
Support Color: 16.7M 50% (CIE1931)
Lamp Type: 9S2P WLED, W/O Drive
Frame Rate: 60Hz
Touch Panel: Without
View Direction: Symmetry
Interface Type: MIPI (4 data lanes), Connector
Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60 °C
Application: All Industrial Application Panel, All Pad & Tablet Panel
