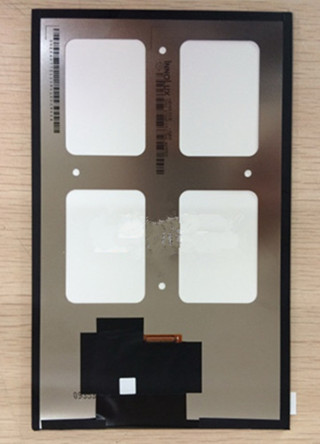

TFT LCDINNOLUX 8.0 inch 39P TFT LCD N080ICE-GB0 Rev. A0
Mouse over to zoom in
- Product 95/121
-
Brand: INNOLUX
Model: N080ICE-GB0 Rev. A0
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD LCM
Pixel Format: 800(RGB)×1280 WXGA
Configuration: RGB Vertical Stripe
Surface: Glare (Haze 0%), Hard Coating, Antireflection
Brightness: 400 cd/m² (Typ.)
View Direction: Symmetry
Contrast Ratio: 1000:1 (Typ.) (TM)
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Mode: AAS, Normally Black, Transmissive
Support Color: 16.7M 60% (CIE1931)
Lamp Type: WLED
Frame Rate: 60Hz
Touch Panel: Without
Interface Type: 39 pins MIPI (4 data lanes), Connector
Power Supply: 1.8/3.3V (Typ.) (VDDI/VCI)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70 °C
Application: Pad & Tablet
