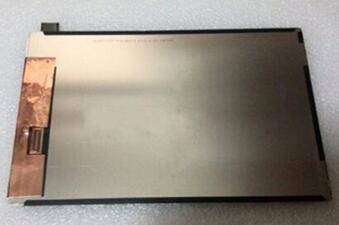

TFT LCD8.0 inch TFT LCD Screen TV080WXM-NL0
Mouse over to zoom in
- Product 96/121
-
Brand:
BOE
Model:
TV080WXM-NL0
Diagonal
Size: 8.0 inch
Type: a-Si
TFT-LCD, LCM
Pixel
Format: 800(RGB)×1280 WXGA
Configuration:
RGB Vertical Stripe
Surface:
Antiglare, (Haze 25%)
Brightness:
350 cd/m² (Typ.)
Contrast
Ratio: 800:1 (Typ.) (TM)
Response
Time: 25 (Typ.)(Tr+Td) ms
Viewing
Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating
Mode: ADS, Normally Black, Transmissive
Support
Color: 16.7M 60% (CIE1931)
Lamp
Type: 7S3P WLED
Frame
Rate: 60Hz
Touch
Panel: Without
Interface
Type: MIPI (4 data lanes), connector, 39 pins
Power
Supply: 1.8/3.3V (Typ.) (VCI/VDDI)
Operating
Temperature: -20 ~ 60°C
Storage
Temperature: -30 ~ 80 °C
Application: Pad &
Tablet
