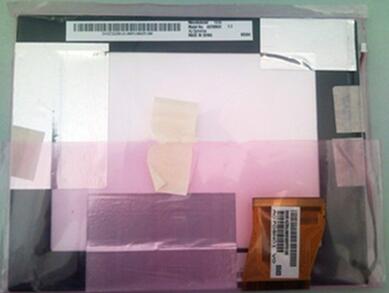

TFT LCDAUO 7.0 inch TFT LCD Panel A070SN01 V3 800*600
Mouse over to zoom in
- Product 81/374
-
Brand: AUO
Model: A070SN01 V3
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×600 SVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare (Haze 8%), Hard Coating (3H)
Brightness: 200 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 3/13 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/60/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K/16.7M 50% (CIE1931)
Lamp Type: 3S6P WLED
Frame Rate:
Touch Panel: Without
Interface Type: TTL (1 ch, 6/8-bit), 60 pins, FPC
Power Supply: 3.3/11.6/15/-7V (Typ.) (VDD/AVDD/VGH/VGL)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70 °C
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
