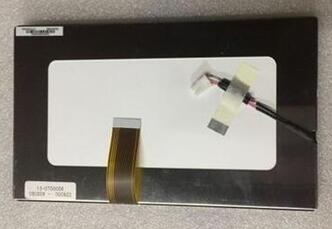

TFT LCDPVI 7.0 inch TFT LCD Panel PW070XS7 480*234
Mouse over to zoom in
- Product 80/374
-
Panel Brand: PVI
Panel Model: PW070XS7
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, Hard coating
Brightness: 350 cd/m2 (Typ.)
Contrast Ratio: 350:1 (Typ.)
Display Color: Full Color
Response Rime: 15/25 (Typ.) (Tr/Td)
Viewing Angle: 55/55/15/35 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 65Hz
Lamp Type: 1 pcs CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 3.3/3.3/5.0/17.0/-12.0V (Typ.) (VCC/VDD1/VDD2/VGH/VGL)
RoHS
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
