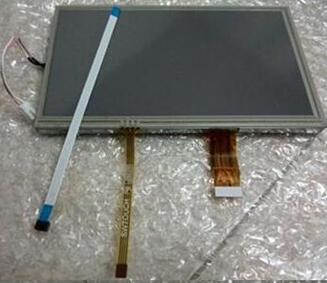

TFT LCDAUO 7 inch TFT LCD Panel C070FW01 V0 480*234 TP
Mouse over to zoom in
- Product 79/374
-
Panel Brand: AUO
Panel Model: C070FW01 V0
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 480(RGB)*234
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare, (Haze 25%)
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: /
Response Rime: 12/18 (Typ.)(Tr/Td) (ms)
Viewing Angle: 60/60/40/60 (Typ.) (L/R/U/D)
Frequency: /
Lamp Type: CCFL
Signal Interface: TFT Specific Analog RGB
Input Voltage: 3.3/5/15/-10V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
