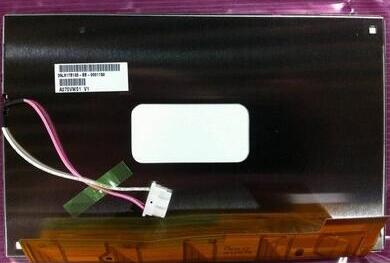

TFT LCDAUO 7.0 inch TFT LCD Panel A070VW01 V0 800*480
Mouse over to zoom in
- Product 181/374
-
Brand: AUO
Model: A070VW01 V0
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×480 SVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 400:1 (Typ.) (TM)
Response Time: 12/18 (Typ.)(Tr/Td) ms
Viewing Angle: 60/60/40/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K
Lamp Type: 1pcs CCFL
Frame Rate:
Touch Panel: Without
Interface Type: TTL (1 ch, 6-bit), 50 pins, FPC
Power Supply: 3.3/8.8/15/-10V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -30 ~ 85°C
Storage Temperature: -40 ~ 85 °C
Application: Car Display Panel
