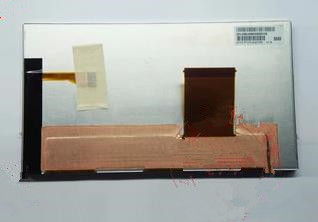

TFT LCDAUO 7" TFT LCD Panel C070VW05 V1 WVGA 800*480
Mouse over to zoom in
- Product 180/374
-
Panel Brand: AUO
Panel Model: C070VW05 V1
Panel Type: a-Si TFT-LCD, Panel
Panel Size: 7.0 inch
Resolution: 800(RGB)*480, WVGA
Display Mode: TN, Normally White, Transmissive
Surface: Antiglare
Brightness: 500 cd/m2 (Typ.)
Contrast Ratio: 300:1 (Typ.)
Display Color: 262K (6-bit)
Response Rime: 15/20 (Typ.) (Tr/Td)
Viewing Angle: 65/65/65/50 (Typ.) (CR≥10) (L/R/U/D)
Frequency: 60Hz
Lamp Type: 3 strings WLED
Signal Interface: Parallel RGB (1 ch, 6-bit)
Input Voltage: 3.3/9.8/19/-8V (Typ.) (VCC/AVDD/VGH/VGL)
RoHS
Application: All Car Display Panel
