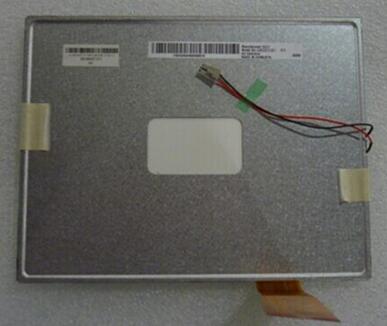

TFT LCDAUO 8.0 inch HD TFT LCD Screen A080SN01 V3
Mouse over to zoom in
- Product 105/121
-
Brand: AUO
Model: A080SN01 V3
Diagonal Size: 8.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 800(RGB)×600 WVGA
Configuration: RGB Vertical Stripe
Surface: Antiglare, Hard Coating (3H)
Brightness: 270 cd/m² (Typ.)
Contrast Ratio: 500:1 (Typ.) (TM)
Response Time: 4/16 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/60/65 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Support Color: 262K /16.2M 50% (CIE1931)
Lamp Type: 3S9P WLED
Frame Rate:
Touch Panel: Without
Interface Type: 60 pins TTL (1 ch, 6/8-bit) + SPI, FPC
Power Supply: 3.3/11.68/15/-6.75V (Typ.) (VCC/AVDD/VGH/VGL)
Operating Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70 °C
Application: All Digital Photo Frame Panel, All Portable DVD Player Panel
